Serial No.:
Price (ex work):
£5750.00 + VAT
Description:

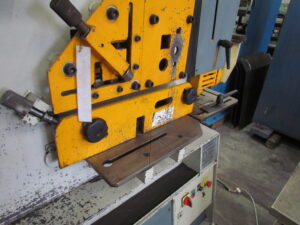

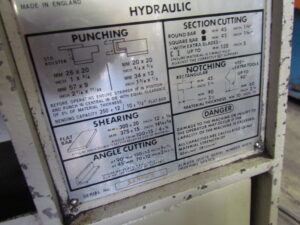

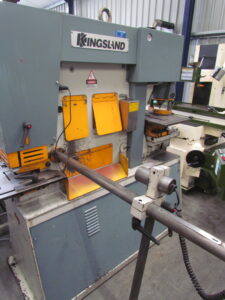

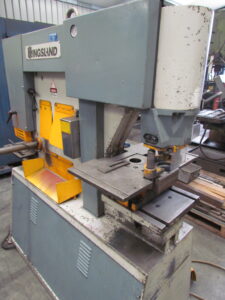

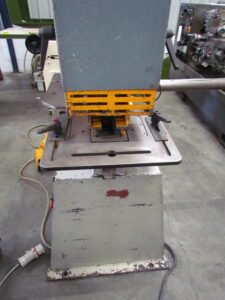

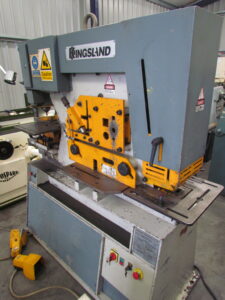

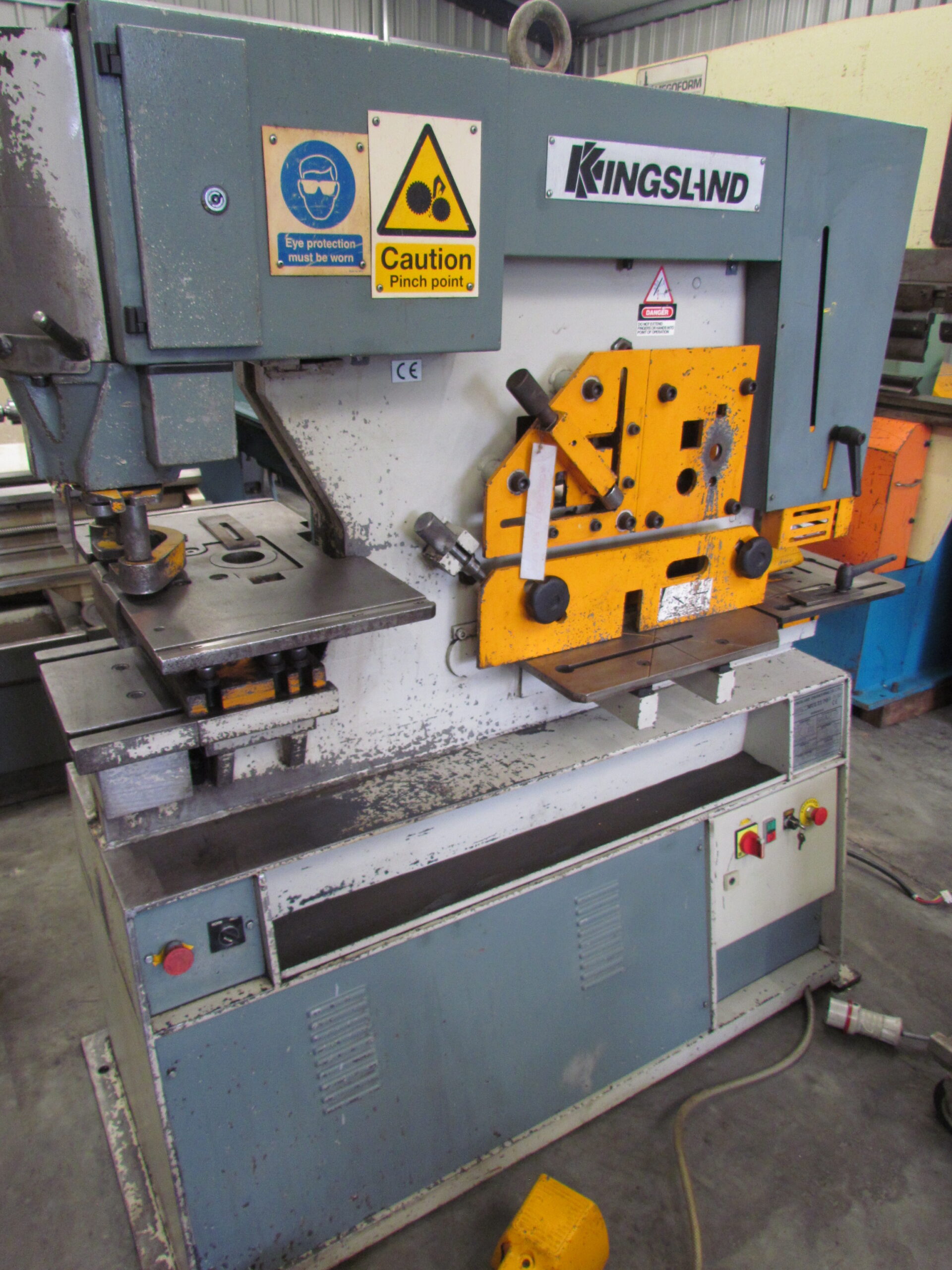

• Type: 5-workstation multipurpose hydraulic steelworker
• Punching: Maximum 26 x 20mm, standard throat depth 305mm, deep throat model 625mm
• Shearing: Flat bar max. Thickness 20mm, max width 375 x 15mm, angle flange trim up to 100 x 15mm
• Angle Cutting: 90° cut 130 x 13mm, 45° mitre 70 x 10mm
• Section Cutting: Round/square bars up to 45mm diameter, channel up to 130 x 65mm, tee 90 x 12mm
• Notching: Max material thickness 10mm, rectangular 45 x 90mm, Vee depth 60mm, angle flange up to 100 x 10mm
• Bending: Bar 250 x 12–13mm, sheet up to 500 x 3mm
• Motor Power: 5.5 kW
• Weight: Net approx. 1620–1650 kg, gross 1740 kg
• Dimensions: L x W x H ~164 x 71 x 180 cm; packed 175 x 86 x 197 cm
• Operation: Dual operator system via two foot pedals, centralised lubrication, power inching control

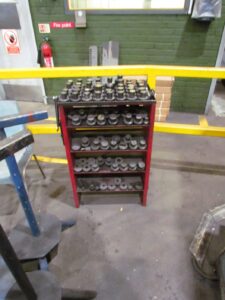

COMPLETE WITH TOOLING
£5750.00 + vat
