Serial No.:
97-8400
Price (ex work):
£5500-00+vat
Description:

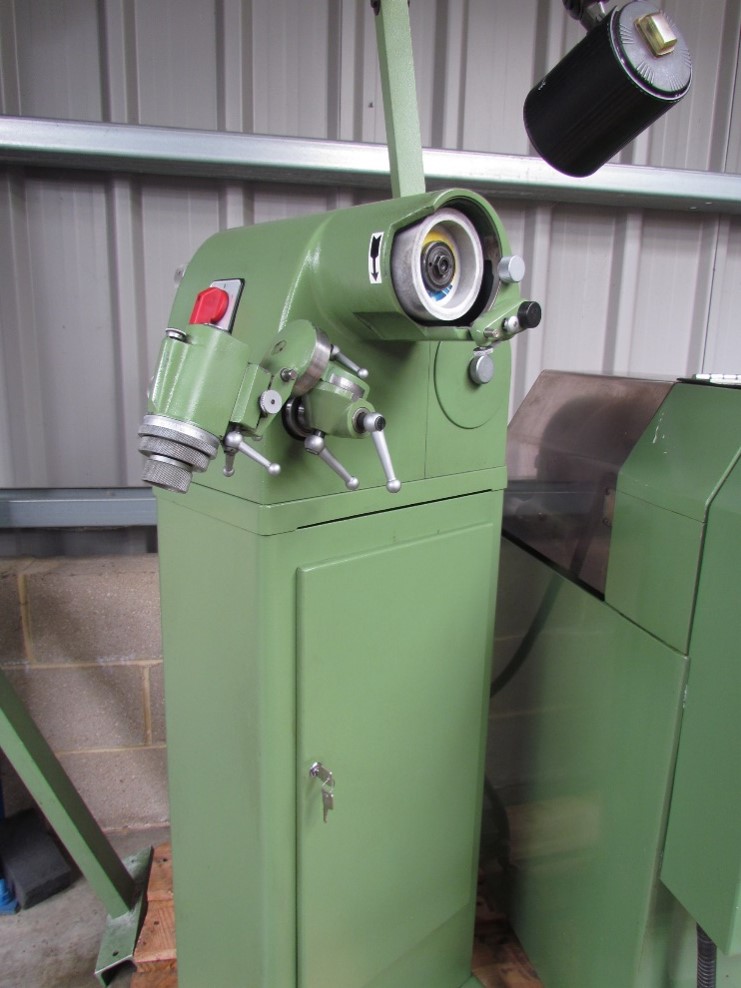

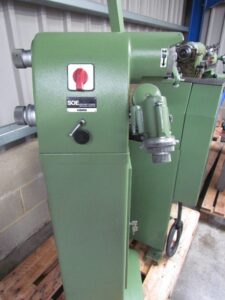

FEINMECHANIK MICHAEL DECKEL
GmbH & Co. KG 82362 Weilheim i. OB
Year of Manufacture: Believed to be 1997 (EX R&D DEPARTMENT )
Machine Identification No
Grinding Spindle Drive
1 Set of Keys
Drive Motor Speed2800 U/min
Grinding Spindle Speed4500 U/min
1 Puller V-Belt DIN 2215
6 x 425
1 Cup Chuck
Clamping and Working Range
1 Operating Range
Largest Collet Bore 17,5 mm
Maximum Grinding Length 90 mm
Largest Grinding Angle 0-180°
Largest Grinding Radius, 10 mm
Coarse Displacement of the Dividing Head Carrier in the Tube Guide 100 mm
Fine adjustment of the cross slide/to both sides 10 mm
Indexing disc detents 30°
12 Number of detents on the indexing disc
Height from pipe guide center to grinding spindle center 142 mm

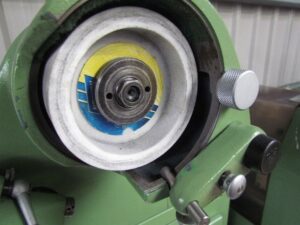

Grinding wheel mounting: Top chuck
Grinding wheel : 100 x 50 x 20MM
Peripheral speed 24 m/sec.
WE SHIP WORLD WIDE
