Serial No.:
Price (ex work):
£2250+ VAT

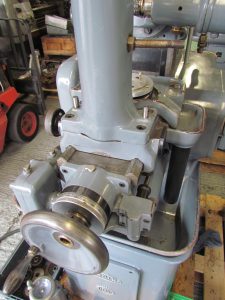

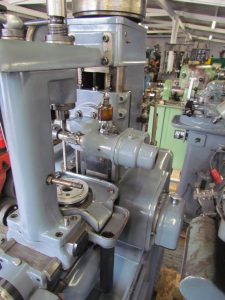

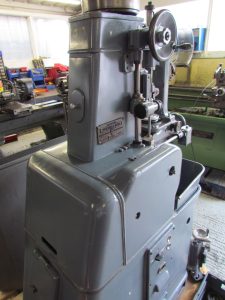

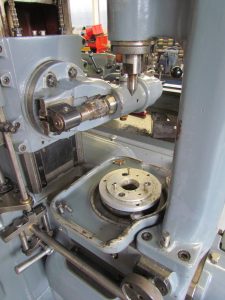

Description:
| WORK SPINDLE | VERTICAL | |
| PITCH CAPACITY (STEEL) | MAX.IN. 3 | MIN D.P – |
| DIAMETER OF SPUR GEAR | MAX.IN. 4 | MIN 0 |
| MAXIMUM FACW WIDTH | 4 IN. | |
| HOB SPINDLE SPEEDS | NO. 4 | RANGE 180-150 R.P.M |
| WORKS FEEDS | NO.- | RANGE .01-.10 i.p.r |
| MAX. CENTRES WORK SPINDLE TO HOB SPINDLE | 2 7/8 IN | |
| MAX WORK LENGTH, CHUCK TO TAIL SUPPORT | 6 ¼ IN | |
| WORK SPINDLE BORE | IN. DIA 25/32 | |
| MAXIMUM HOB DIMENSIONS | LENGTH IN 1 1/2 |
DIA. IN 1 1/4 |
| DIFFERENTIAL UNIT | STANDARD | |
| FLOOR AREA REQUIRED, HEIGHT & WEIGHT | LENGTH FT. IN |
2 10 |
| WIDTH FT. IN. |
2 1 | |
| HEIGHT FT. IN |
4 11 | |
| WEIGHT LB. | 15,00 | |
| ELECTRIC MOTORS | NO. 1 | H.P1 |

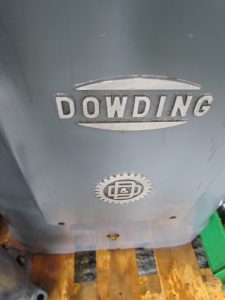

| MAIN UK SUPPLIER | DOWDING & DOLL LTD |
WHILST EVERY CARE HAS BEEN TAKEN TO GIVE THE CORRECT TECHNICAL SPECIFICATION OF THE ABOVE MACHINE NO GUARANTEE IS GIVEN AS TO ACCURACY OF THIS INFORMATION. ALL SPECIFICATIONS SHOULD BE CHECKED BY THE PURCHASER.
