Serial No.:
Price (ex work):
POA

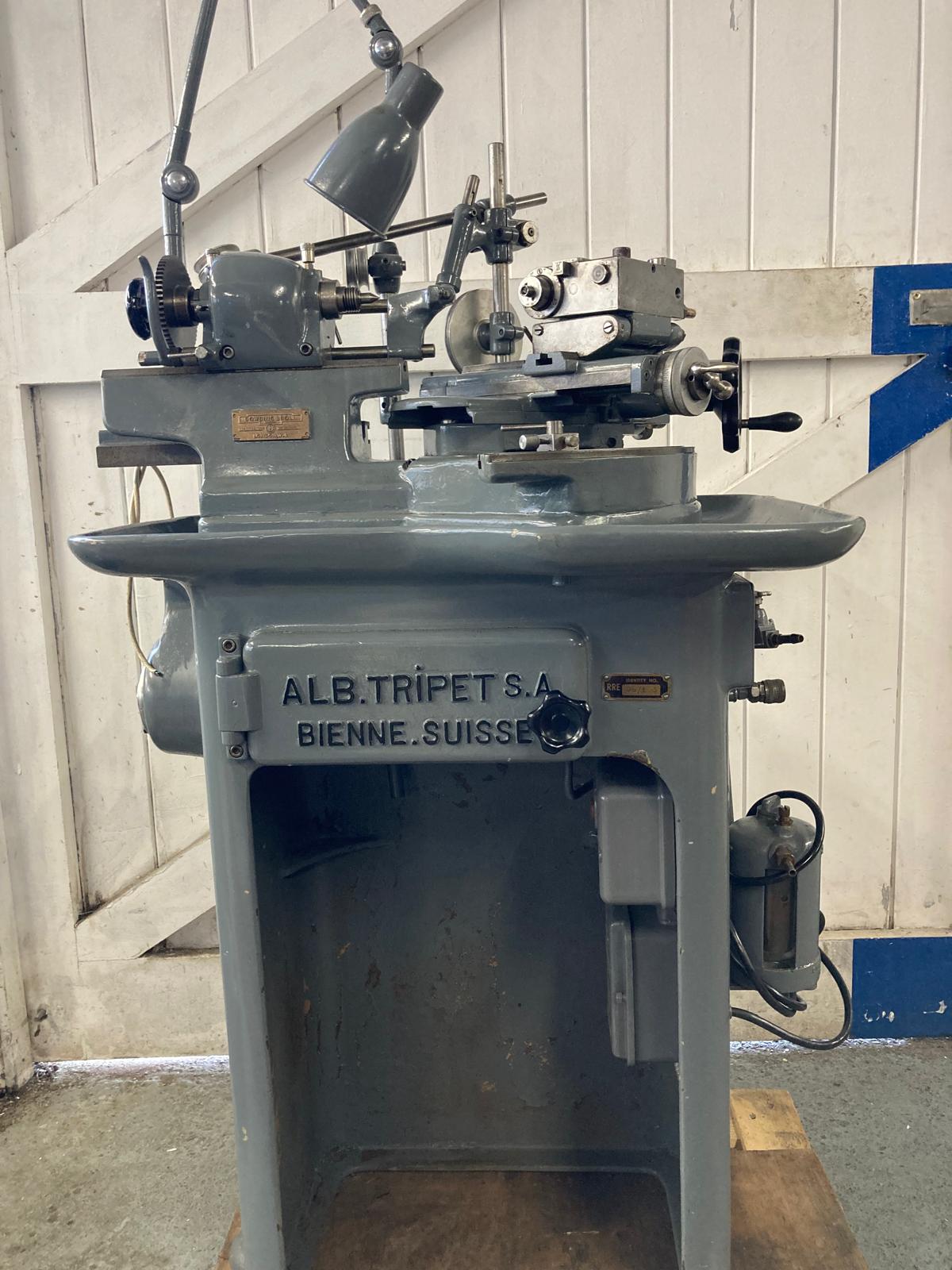

Description:
TECHNICAL DATA:
| Centre height | 2 ¾ or 4 1/64 “ (60mm or 102mm) |
| Swivelling of carriage | |
| Normal bed plate | 45° at front 45° at back |
| Special bed plate | 90° at front 60° at back |
| Maximum grinding length | 4”(100mm) |
| Maximum grinding diameter (chuck) | 2 ¾ “ (60mm) |
| Maximum length of pieces held in steadies | 5 29/32 “ (150mm) |
| Net weight | 43kg |

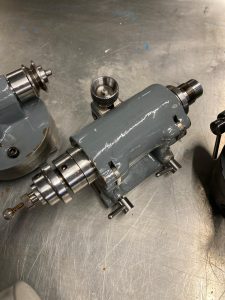

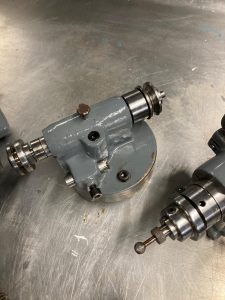

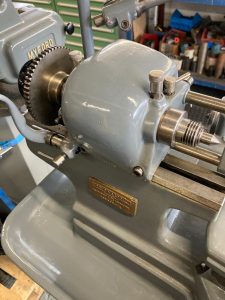

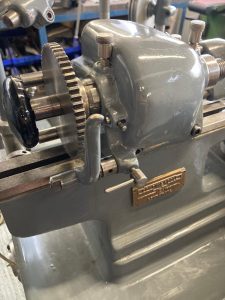

WORK-HOLDING HEADSTOCK
TECHNICAL DATA:
| Speeds of the work spindle | 900/1500/2600rpm |
| Collets W/12 bore | 1/64 “- 25/64” (0.5-10mm) |
| Thread on spindle nose | 25mm diameter, 2.5 mm pitch |
| On request, nose SV 70 23mm diameter, 2mm pitch | |
| Maximum clamping distance
Between centre Net weight |
4 3/8”(110mm)
7kg |
