Serial No.:
Price (ex work):
£3950+VAT
Description:
TABLE SIZE 48“ X 9 “
LONGITUDAL TRAVERSE 36”- 915mm
CROSS TRAVERSE 12 “ 305mm
VERTICAL TRAVERSE 16 “ 406mm
RAM MOVEMENT 12 “ 305mm
SPINDLE TAPER R8
SPINDLE SPEEDS variable speeds 50-3750rpm
SPINDLE TO COLUMN FACE 6 3/4”-19 “ 171-482 mm
SPINDLE TO TABLE 0 – 18 “ 0 – 455mm
QUILL DOWN FEED PER REV OF SPINDLE 0.0015” – 0.003”- 0.006” 0.04mm-0.08mm 0.15mm
MOTOR HP 2

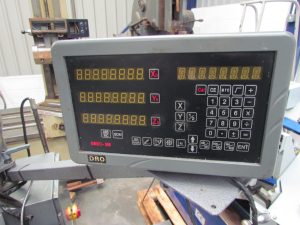

SPECIAL FEATURES;SWIVEL OF HEAD IN ALL AXIS, POWER FEEDS TO TABLE ALONG AND ACROSS ,MACHINE MANUAL ,DRO,
PRICE £ 3950.00 v.a.t and carr extra
