Serial No.:
Price (ex work):
POA

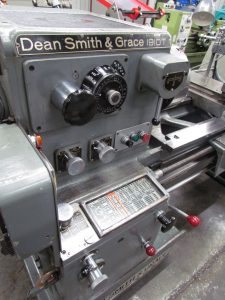

Description:
| CAPACITY | INCH | METRIC |
| SWING OVER BED | 19.5 | 496 |
| SWING OVER CROSS SLIDE | 10.5 | 269 |
| WIDTH ACROSS BED SHEARS | 17.5 | 445 |
| DISTANCE BETWEEN CENTRES | 40 | 1000 |
| SPINDLE SPEEDS | 5.6-1000 | |
| 2 SPEED MOTOR | 10/5HP | |
| SPINDLE NOSE | 3 3/16 | 81MM |
| SPINDLE | D1-8 | |
| UNIVERSAL GEARBOX | ||
| THREADING | 2-56TPI | 0.5-120 |
| DP & MODULE | ||
| TAILSTOCK | ||
| SPINDLE DIAMETER | 3 | 76 |
| TRAVEL | 12 | 305 |
| TAPER | 4MT | |
| WEIGHT | 3600KGS | |
| FLOOR SPACE | 3X1.5M |
EQUIPMENT:

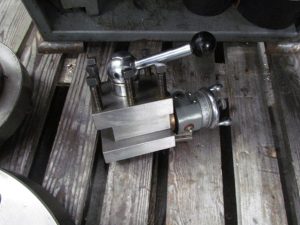

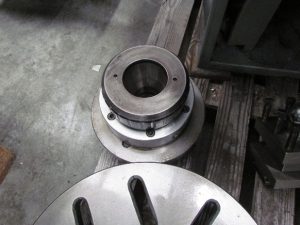

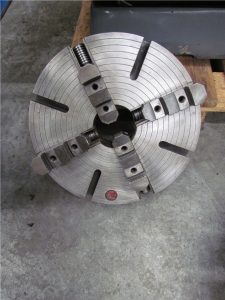

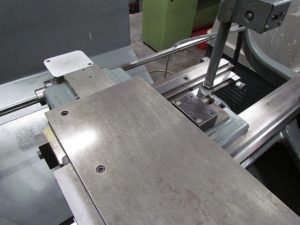

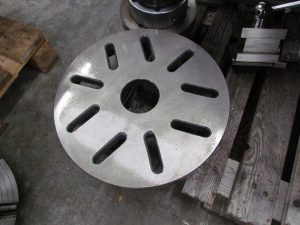

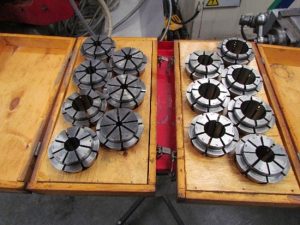

3 JAW, 4 JAW, FACEPLATE, CATCH PLATE, COLLET HEAD, 2 X CRAWFORD MULTISIZE COLLET SETS, MULTIFIX TOOLPOST, 4 WAY TOOLPOST, ADDITIONAL COMPOUND SLIDE

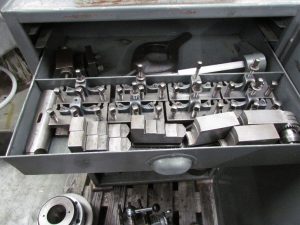

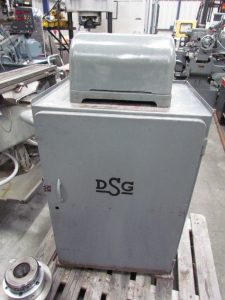

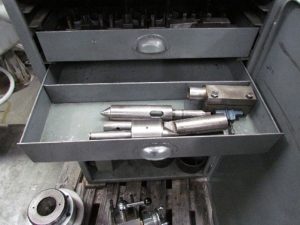

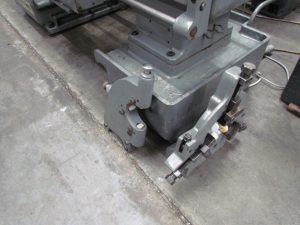

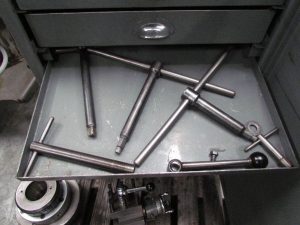

RELIEVING ATTACHMENT, TAPER TURNING, TOOL CABINET, FIXED AND TRAVELLING STEADY, COOLANT, LIGHTING
METRIC GRADUATIONS
