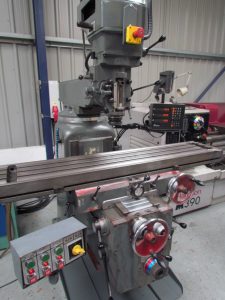

AJAX AJT4 TURRET MILLING MACHINE 6

Serial No.:

Price (ex work):
POA

Description:

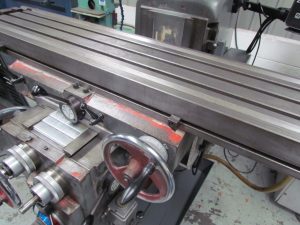

TABLE
Working surface 1372×279
Number of T slots 3
Width of T slots 16
Distance Between centres 63.5

RANGE OF TABLE
Longitudinal Automatic 800
Cross 345
Vertical 406

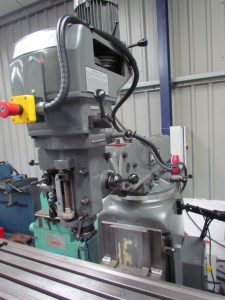

SPINDLE
Maximum distance Spindle to Table 406
Maximum distance Spindle to column 685
Minimum distance Spindle to column 127
Quill Traverse 127
Main spindle Taper ISO.40
Number of Speeds 8
Range of Speeds 49, 85, 145, 260, 450, 780, 1330 2440 rpm
Variable Speed Head Speed Range 45-3,500 rpm
Number of feeds 3
Range of feeds 04/08/16

TABLE FEEDS
Feeds 12
Longitudinal 12-576 mm/min
Cross 12-576 mm/min
Vertical 4-171 mm/min

RAPID TRAVERSE
Longitudinal 1900 mm/min
Cross 1900 mm/min
Vertical 571 mm/min

MOTORS
Spindle Drive Motor 3hp
Feed Motor 1.5hp
Coolant Pump 0.08p

WEIGHTS & DIMENSIONS
Net Weight 1380kgs
Gross Weight 1650kgs
Case Dimensions 1778 x 1702 x 2083mm
Volume 6.6 cu. Meters
