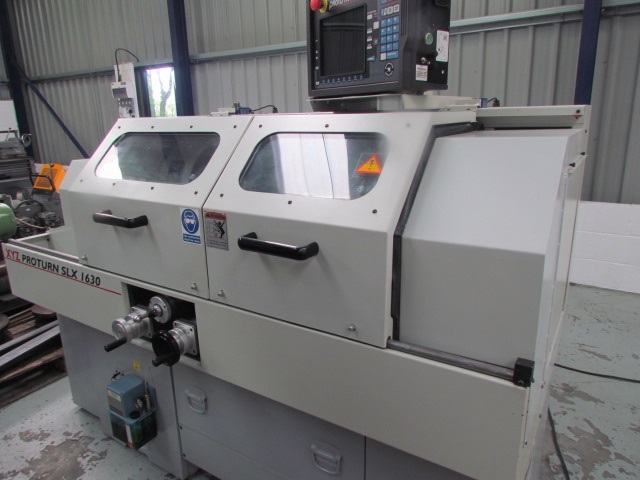

XYZ Proturn1630 SLX Lathe

Serial No.:

Price (ex work):


XYZ Proturn1630 SLX Lathe


Date of purchase 2010- hardly used  Engine development R&D company .

Control System


The machine can be used manually or under full CNC control, with clearance cycles, profiling, grooving, drilling routines, standard and custom threads.



Swing over the bed                                                                      400mm

Swing over cross slides                                                                219mm

Cross slide travel                                                                          216mm

Distance between centres                                                          760mm

Maximum cutting length                                                           760mm

Spindle bore                                                                                   54mm

Maximum speed                                                                           2500 rpm

Standard Equipment

  • Constant Surface Speed
  • Verify Solid Model Graphics
  • Rapid Traverse with Joy Stick
  • 3 Jaw Chuck 200mm
  • Quick Change Tool post and 6 Holders
  • Centres and Bushes
  • Tailstock
  • Interlocked Chuck Guard and Main Guard
  • Auto Lubrication
  • Coolant
  • Work light

Optional Equipment Purchased With The Lathe

  • TRAKing®
  • Off-line Software

Machine Dimensions

Minimum width required                      2090mm

Minimum depth required                     1760mm

Minimum height required                    1800mm

Power requirement

Three phase 415v supply

25 Amp /3 phase
